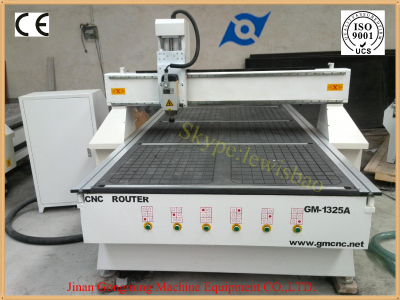

Wood Engraving Machine/CNC Router Wood CNC Router With Servo Motor GM-1325A
Equipment Features
1.Adopt Taiwan H25 linear square guide rail, double slippers. Bearing heavy, working
steadily high precision, and long life time. Imported ball screw, high precision for cutting.
2.Adopting advanced DSP system, operated with the handle, convenient operation, humanization design.
3.Unique intelligent budget principle,fully develops the potential of the motor and lead to high processing
speed,the synchronization of curves and straight lines,smoother curves.
4.Well compatibility CAD/DAM designing software e.g. Type3/artCAM/Castmate/wentai etc.
5.Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. no oil vacuum pump,high
suction,more convenient,stable capability.
6.Adopt high speed stepper motor and drivers,and two motors for Y axis.Max speed is 35M/MIN. Auto
Aligning System. With air cooling spindle highly upgrade the processing speed.
Applications Fields:
1.Wood doors,wood windows,Advertising logo,label,3D mould of lamp case,wood working 3D Ornamental-engraving Technology,wave panels,aluminium plate cutting,acrylic cutting engraving and so on.
2.Wood working area : waving board , cabinet door , solid wood door , craft wood door ,
no-paint door , folding screen , craft window , shoe polisher , game machine cabinet ,
Ma-jiang Table , computer table and panel type furniture .
3. Advertising Area : making advertising products made from Brand Board , Acryl cutting , mould and some
other material .
4.Mould Area : Metal mould eg ,engraving copper , aluminium and iron, and nonmetal mould eg scagliola ,
sandstone , plastic board , PVC pipe , wood sheet etc .
5. Other area : art and craft area , embossment and engraving photo.
- Size: 12
- Place of Origin: China
- Brand Name: Gongming
- Model Number: GM-1325A
- Weight: 1200.000 kg
Technical Parameter:
Model | GM-1325A | |
Working Area(X,Y,Z) | 1300mm*2500mm*200mm | |
Spindle Motor | 4.5kw air-cooling spindle(Optional:water-cooling spindle) | |
Working Mode | Servo motor (Optional:Stepper motor ) | |
Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system | |
Transmission System | X,Y Axis:Rack and Pinion;Z Axis:Ball Screw | |
Table Surface | Vacuum table & T-slot | |
Machine Body | Whole Steel structure | |
Motion Positioning Accuracy | ± 0.03/300mm | |
Repositioning Accuracy | ± 0.05mm | |
Max Motion Speed | 50,000mm/min | |
Max Engraving Speed | 30,000mm/min | |
Rotating Speed of Spindle | 18.000rpm | |
Z-axis setting | Auto Z origin tool high sensor | |
Dictate Formate | G code, *.u00, *.mmg, *.plt | |
Operating Voltage | AC380V/50Hz, 3phase | |
Software | Type3 ,Wentai (ArtCUT), ArtCAM software/Castmate/Ucancam | |
Packing Size | 3350mm*1950mm1990mm | |
Lubrication System | Oil lubrication system | |
Net weight/ Gross Weight | 1227kg/ 1240kg | |
Noise Level | Racing | LAeep dB(A)72±1 |
Engraving | LAeep dB(A)80±2 | |
Engraving Peak | LAeep dB(C)95 | |
Optional Parts | Dust Collecting System | |
Vacuum Table with Air Pump | ||
Mist Sprayer and flume | ||
Rotary device with Diameter:80mm/100mm/200mm | ||
DSP System /Portable Control Pad (128MB) | ||
