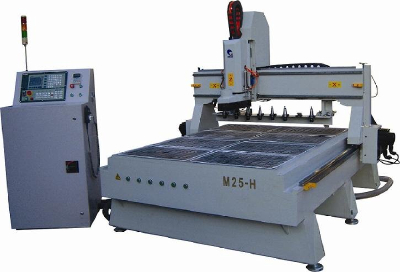

large bed Linear auto tools changer ATC wood working engravingrouter,cnc machinery sales CE Certificate ,vacuum table

large bed Linear auto tools changer ATC wood working engravingrouter,cnc machinery sales CE Certificate ,vacuum table

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-03-07
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong, China
  • Brand Name:  Gongming
  • Model Number:  GM-1325H
  • Weight: 1000.000 kg

Standard features

1. ltaly well-known air cooling spindle,high precision ,long life tine,steady working, easy to start up.
2. Thicken square pipe wtructure,well welded,no distortion for whole structure.
3.Adope inpoted square orbit,double slippers ,bdaring heavy,working steadily, high precision,and long life time.
4. Dsp controller system with USB interface.working without connecting with computer during wouking and easy to control
5. Software:CAD/DAM designing software eg type3/ArtCAM/Castmate/Wentai etc.
Vacuum table with 6 vacuum zones ,which can adsorb different sizes materials.Options for vacuum pump:Vacuum pump made in china No-oil vacuum pump made in Gemany.Auto Oiling system.Easy tolperate by pressing one key.
6. Adopt high speed stepper motor and drives,and two motors for Y axis .Max speed is 50M/MN.Auto Aigning System.


  • Place of Origin:  Shandong, China
  • Brand Name:  Gongming
  • Model Number:  GM-1325H
  • Weight: 1000.000 kg

Performance Parameter:

Product model

DM-M25

X,Y working area

1300mm*2500mm

Z working area

220mm

Table Size

1480mm*3000mm

Table structure

Vacuum table

Max. Speed

25m/min

Work-holding

by suction

CPU

DSP/100MHZ

Interface

USB

Command

G code*.u00*.mmg*plt

Power

1840W

Work Mode

Stepper

Work voltage

AC380V/50Hz

Spindle power

4.5kw

Spindle rotating speed

0-24000rpm/min

Power vacuum pump

0-18000rpm/min

Guide rail

Square

Control system

DSP or NCstudio

Compatible CAD/CAM software

TYP3/Artcam/Castmate/Ucancam

Surroundings for software

Windows98/2000/xp
